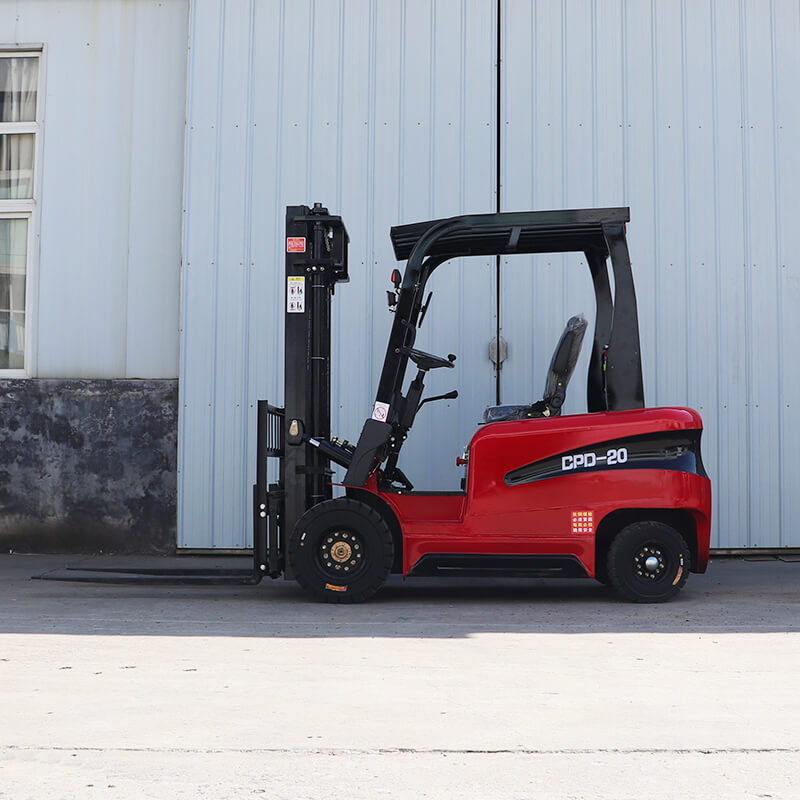

2 Ton Electric Forklift

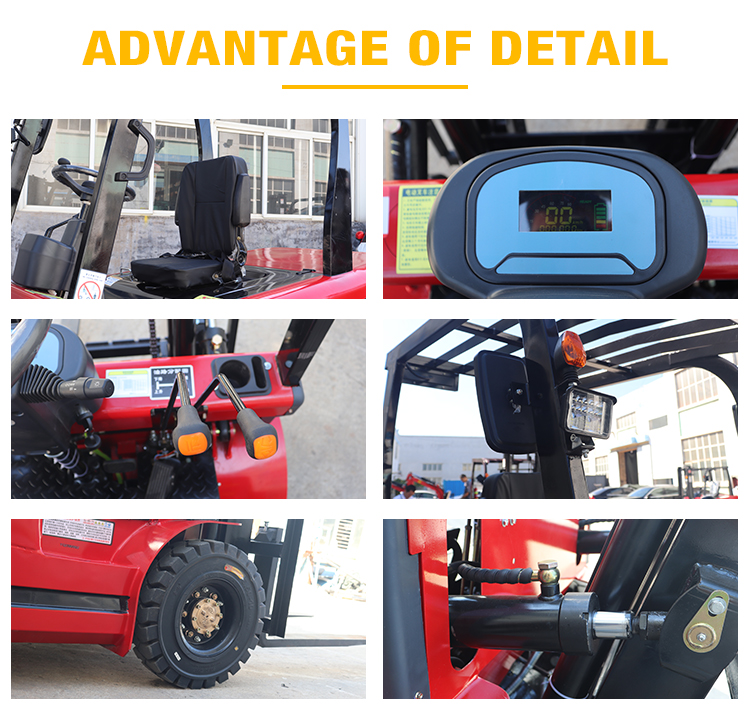

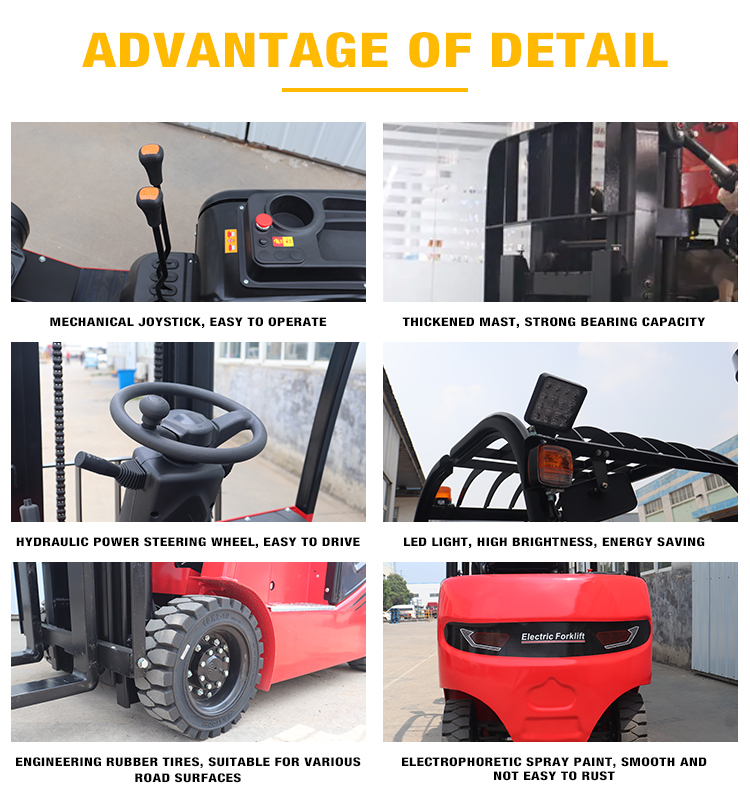

Features

1.Mechanical joystick, easy to operate.

2.Thickened mast, strong bearing capacity.

3.Hydraulic power steering wheel, easy to drive.

4.LED light, high brightness, energy saving.

5.Engineering rubber tires, suitable for various road surfaces.

6.Electrophoretic spray paint, smooth and not easy to rust

Contact Now E-Mail Telephone WhatsApp

Product Details

Electric forklifts are powered by rechargeable batteries, eliminating the need for fuel and reducing emissions in the workplace. They are also cost-effective in the long run, as electricity is generally cheaper than diesel or propane fuel.

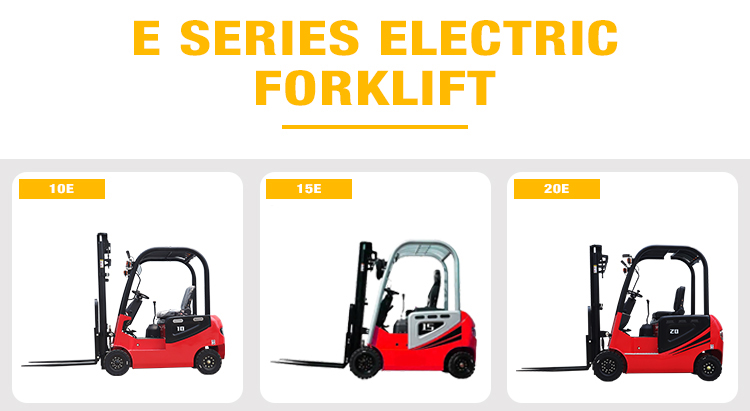

forklift manufacturer

Model	10E	15E	20E
Rated capacity(kg)	1000	1500	2000
Rated lifting height(mm)	3000	3000	3000
Battery	60V/120Ah	60V/140Ah	60V/210Ah
Battery weight(kg)	150	165	300
Total weight(with battery)(kg)	1530	2150	2500
Load center distance(mm)	500	500	500
Performance
Lifting speed,laden/unladen(mm/s)	220/230	200/220	180/200
Lowering speed,laden/unladen(mm/s)	550	550	550
Drive motor(kw)	5	5	5
Lift motor(kw)	4.5	4.5	4.5
Tilt of the mast,F/R(°)	5/10	5/10	5/10
Service brake/parking brake	Hydraulic/Mechanial	Hydraulic/Mechanial	Hydraulic/Mechanial
Size
Wheelbase(mm)	1330	1550	1550
Body size(LWH mm)	198010202017	223010962030	223010962030
Fork size(TWL mm)	321001070	351001070	401001070
Turning radius(mm)	2050	2200	2280
Groubd clearance under mast(mm)	77	88	88

forklift manufacturer

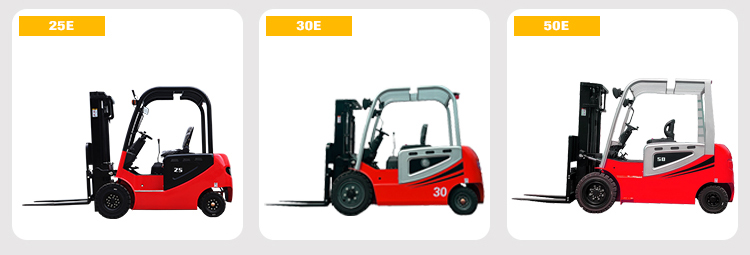

Model	25E	30E	50E
Rated capacity(kg)	2500	3000	5000
Rated lifting height(mm)	3000	3000	3000
Battery	72V/210Ah	72V/260Ah	80V/500Ah
Battery weight(kg)	360	430	1100
Total weight(with battery)(kg)	3150	4150	7100
Load center distance(mm)	500	500	500
Performance
Lifting speed,laden/unladen(mm/s)	210/250	200/300	250/280
Lowering speed,laden/unladen(mm/s)	450	450	450
Drive motor(kw)	9	9	18
Lift motor(kw)	7.5	9	25
Tilt of the mast,F/R(°)	5/10	5/10	6/12
Service brake/parking brake	Hydraulic/Mechanial	Hydraulic/Mechanial	Hydraulic/Mechanial
Size
Wheelbase(mm)	1600	1850	2040
Body size(LWH mm)	239011602030	270012252057	299015852340
Fork size(TWL mm)	401001070	451221070	551501070
Turning radius(mm)	2370	2680	2700
Groubd clearance under mast(mm)	88	82	160

forklift manufacturer

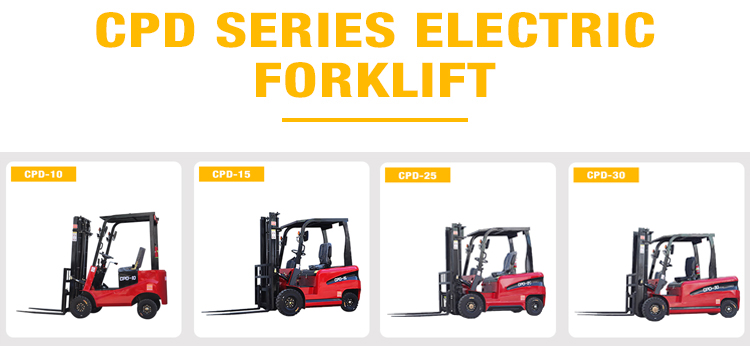

Model	CPD10	CPD15	CPD25	CPD30
Machine weight	1660kg	2150kg	3600kg	3800kg
Machine Size	200011202150mm	200012002150mm	243012002200mm	250012002200mm
Tyre size	front 500-8/ rear 400-8	front 650-10/ rear 500-8	front 650-10/ rear 500-8	front 650-10/ rear 500-8
Battery	70A 4sets	70A 5sets	70A 10sets	70A 10sets
Drive motor	2500W AC	2500W AC	7500W AC	10kw AC
Power unit	1500W DC	4000W AC	7500W AC	7.5kw AC
Braking method	oil brake	oil brake	oil brake	oil brake
Lifting height	3m	3m	3m	3m
Rated voltage	60V	60V	60V	60V
Wheelbase	1300mm	1380mm	1580mm/1680mm	1680mm
Steering method	Hydraulic assist	Hydraulic assist	Hydraulic assist	Hydraulic assist
No load driving speed	12km/h	13km/h	13km/h	13km/h
Full load driving speed	11km/h	12km/h	12km/h	12km/h
No load lifting speed	280mm/s	280mm/s	280mm/s	280mm/s
Full load lifting speed	180mm/s	180mm/s	180mm/s	180mm/s
Min.turning radius	2200mm	2400mm	2630mm	2700mm
Front wheel track	1010mm	1050mm	1040mm	1050mm
Rear wheel track	930mm	930mm	930mm	950mm
Fork	1070mm	1070mm	1070mm	1070mm
