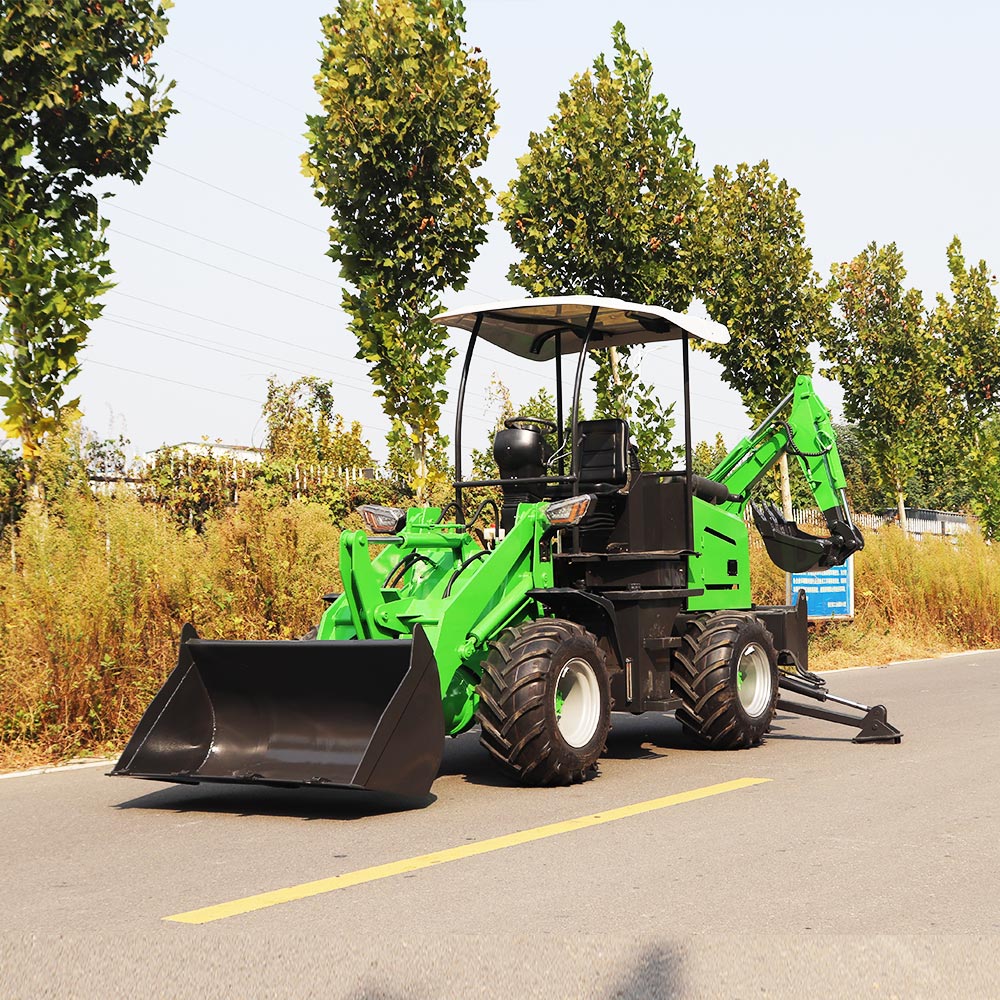

Mini Backhoe Loader Excavator
1.Hydraulic power steering wheel for easy operation.
2.Flange Cylinder,good sealing, stable connection.
3.LED lighting, high brightness, energy saving.
4. Cast steel axle, strong bearing capacity.
5. Electrophoretic anti-rust spray paint.
6.Backhoe bucket, work like an excavator.
Backhoe loader is a versatile and essential piece of construction equipment that combines the capabilities of a loader on the front and a backhoe on the rear. This multifunctional machine is commonly used in construction, excavation, landscaping, and utility projects for tasks such as digging, trenching, lifting, loading, and backfilling. The loader bucket in the front is used for lifting and transporting materials, while the excavator arm in the back is used for digging and earthmoving operations. Backhoe loaders are known for their versatility, efficiency, and ability to perform a wide range of tasks on job sites, making them a popular choice for various material handling and construction applications.
Model | JG06-10 | JG08-12 (No Tail) | JG08-12 | JG10-20 |
Dimensions | 5000*1150*2800mm | 4700*1400*2550mm | 5100*1350*2580mm | 5500*1750*2650mm |
Operating Weight | 1800kg | 2400kg | 2500kg | 3400kg |
Wheel Drive | 4x4 | 4x4 | 4x4 | 4x4 |
Tire Model | 26x12-12 | 10-16.5 | 825-16 | 20.5-16 |
Transmission Type | Hydrostatic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic |
Engine | ||||
Engine Power | 18.2kw | 37kw | 37kw | 37kw |
Cylinder Number | 3-cylinder | 4-cylinder | 4-cylinder | 4-cylinder |
Engine Type | Diesel, 4-stroke, Water Cooling | |||
Loading Performance | ||||
Rated Load | 600kg | 1000kg | 1000kg | 1500kg |
Bucket Capacity | 0.2m³ | 0.3m³ | 0.4m³ | 0.5m³ |
Bucket Width | 1150mm | 1300mm | 1300mm | 1800mm |
Max. Dumping Height | 2000mm | 2300mm | 2200mm | 2800mm |
Digging Performance | ||||
Bucket Capacity | 0.08m³ | 0.08m³ | 0.08m³ | 0.1m³ |
Bucket Width | 400mm | 400mm | 350mm | 400mm |
Max. Digging Depth | 2400mm | 1400mm | 1500mm | 2000mm |

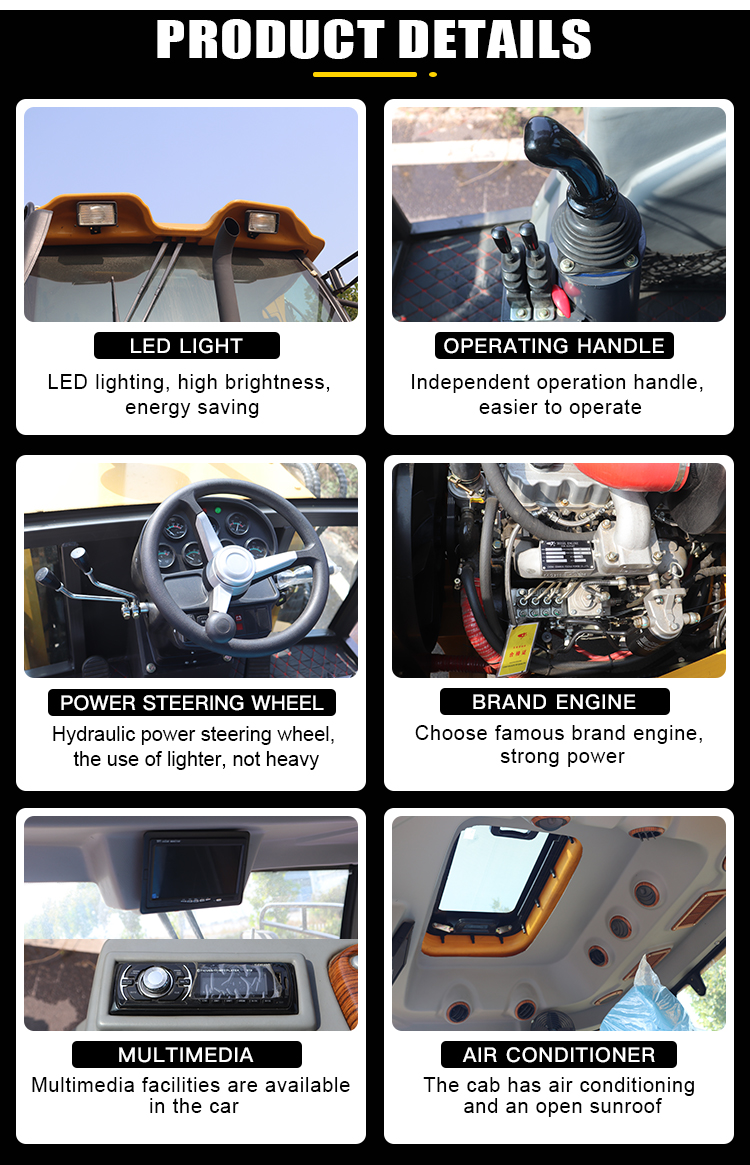

Product Details
