All Terrain Forklift Factory

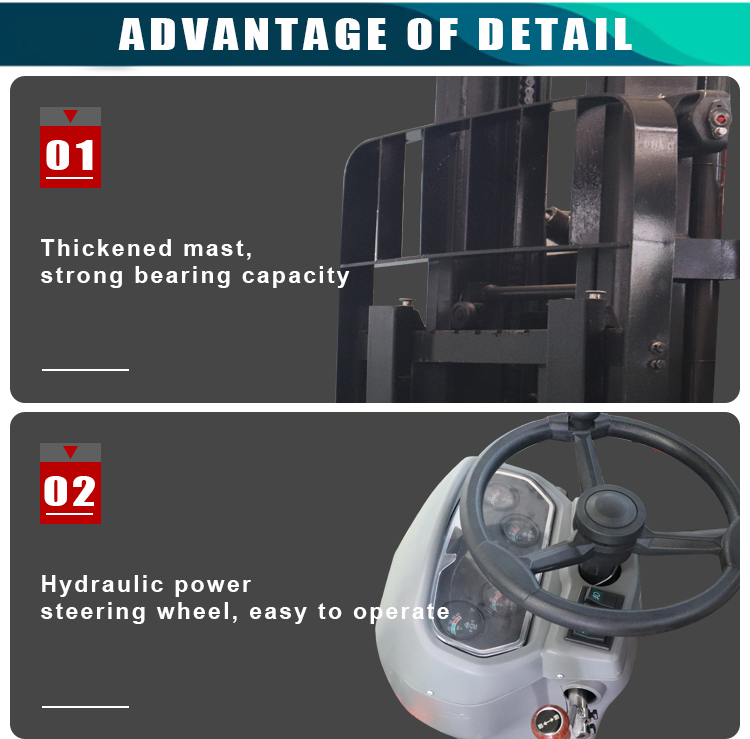

1.Thickened mast, strong bearing capacity

2.Hydraulic power steering wheel, easy to operate

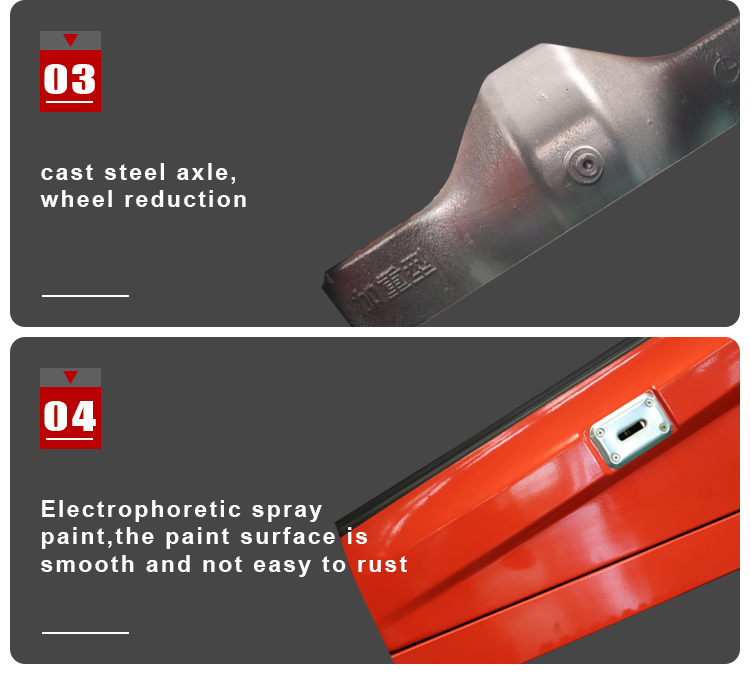

3.cast steel axle,wheel reduction

4.Electrophoretic spray paint,the paint surface is smooth and not easy to rust

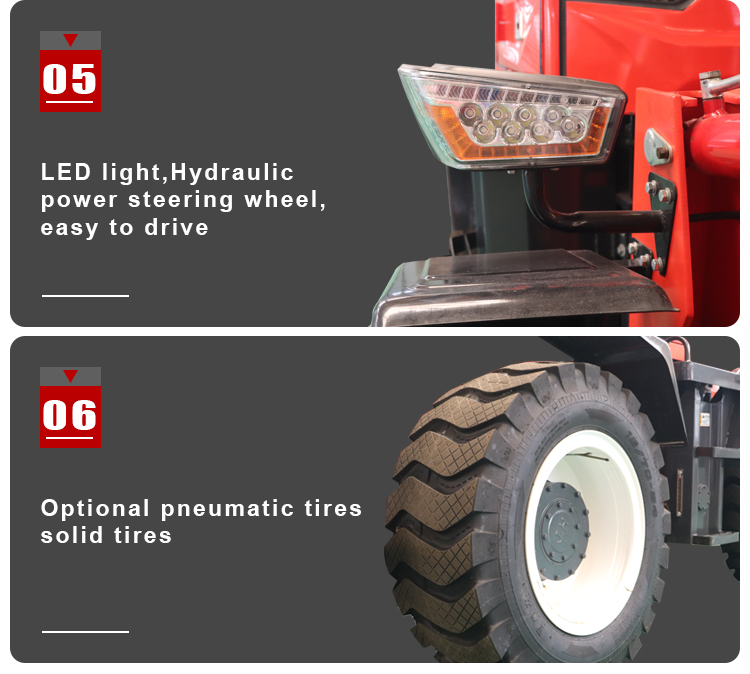

5.LED light,Hydraulic power steering wheel, easy to drive

6.Optional pneumatic tires/solid tires


Contact Now E-Mail Telephone WhatsApp
Product Details

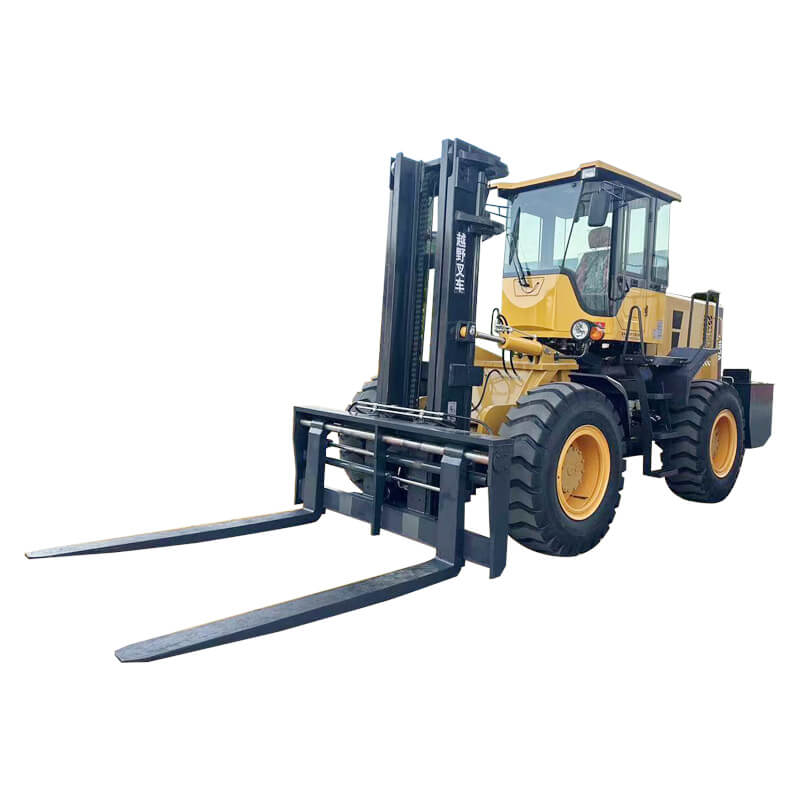

Introduction to 10 Ton All-Terrain Forklift

10 ton all-terrain forklift is a heavy-duty and versatile piece of equipment designed for demanding outdoor applications where standard forklifts may not be suitable. These specialized forklifts are built to handle rugged terrain, such as construction sites, logging operations, mining sites, and other challenging environments.


Key features of 10 ton all-terrain forklift include:

  1. High Lifting Capacity: With a robust lifting capacity of 10 tons (or 20,000 pounds), these forklifts are capable of handling heavy and bulky loads with ease, making them ideal for lifting large materials in outdoor settings.

  2. All-Terrain Capability: Equipped with specialized tires, sturdy suspension systems, and high clearance, all-terrain forklifts can navigate through rough terrains, gravel, mud, and uneven surfaces with efficiency and stability.

  3. Four-Wheel Drive: Many models come with four-wheel drive functionality to provide enhanced traction and control on rough terrains, ensuring optimal performance in challenging outdoor conditions.

  4. Versatile Attachments: All-terrain forklifts can be fitted with various attachments, including forks, buckets, and lifting hooks, allowing for a wide range of material handling tasks to be performed with precision and flexibility.

  5. Operator Comfort and Safety: Designed for operator comfort and safety, these forklifts feature ergonomic controls, spacious cabs with excellent visibility, and advanced safety features to ensure smooth and secure operation even in challenging environments.


10 ton all-terrain forklift combines heavy lifting capabilities, rugged terrain handling, and versatile attachments to provide a reliable solution for industries that require efficient material handling equipment in outdoor and rough situations.

In summary, 10 ton all-terrain forklift is a durable, powerful, and versatile machine that excels in demanding outdoor work environments, offering efficient and secure handling of heavy loads in rough terrains with ease and precision.


All Terrain Forklift Factory


Parameter


All Terrain Forklift Factory

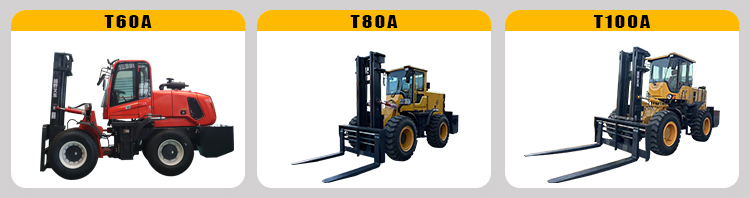

Model

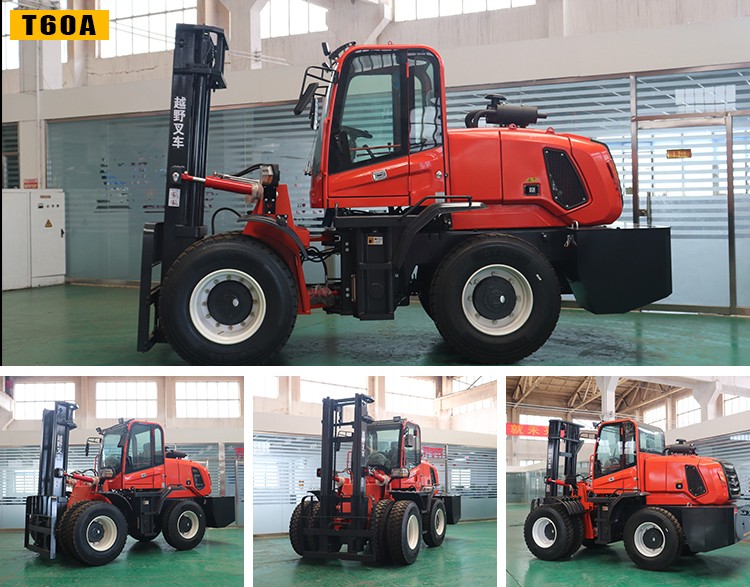

T60A

T80A

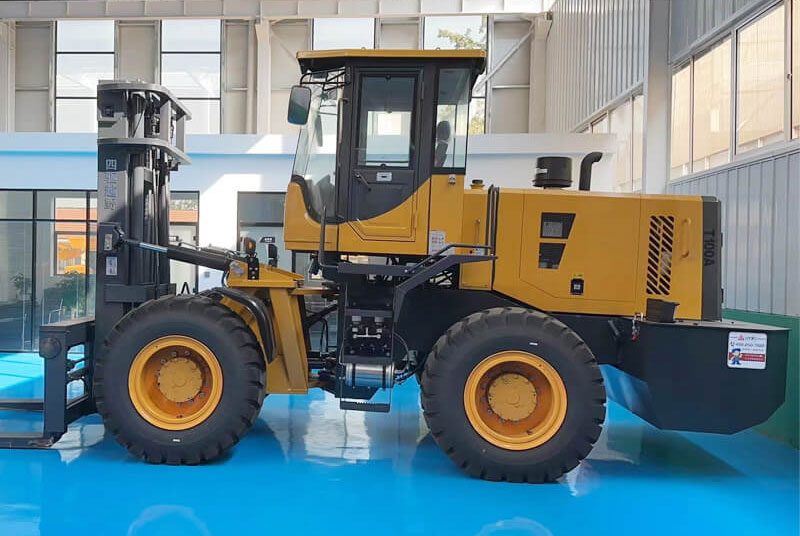

T100A

Engine

Xichai/Yuchai4105,90-103kw

Yuchai4108,110kw

WeichaiWP6 6105,92kw

Drive mode

4wd

4wd

4wd

Gearbox

280 high low speed torque converter

315 high low speed torque converter

315 high low speed torque converter

Axle

Wheel reduce

Wheel reduce

30

Tire

12R22.5(4/2)

17.5-25

17.5-25

Wheelbase

2400mm

2800mm

3000mm

Rated lifting weight

6000kg

8000kg

10000kg

Rated lifting height

4000-6000mm

4000-6000mm

4000-6000mm

Load center distance

600mm

800mm

800mm

Min. turning radius

4500mm

5500mm

6500mm

Max. climbing angle

≤38°

≤38°

≤38°

Min. ground clearance

380mm

380mm

380mm

Tilt of the mast,front/rear

10°/8°

10°/8°

10°/8°

Speed

45km/h

45km/h

45km/h

Max. hook traction

35Kn

55Kn

60Kn

Mast steel width

180mm

200mm

220mm

Fork length

1520mm

1520mm

1520mm

Machine weight

6500kg

10500kg

12000kg

Machine size

4600*2200*2850mm

5800*2200*3100mm

5800*2400*3300mm


All Terrain Forklift Factory

All Terrain Forklift Factory

All Terrain Forklift Factory

All Terrain Forklift Factory


Product Details

Product Details


Product Details


Product Details

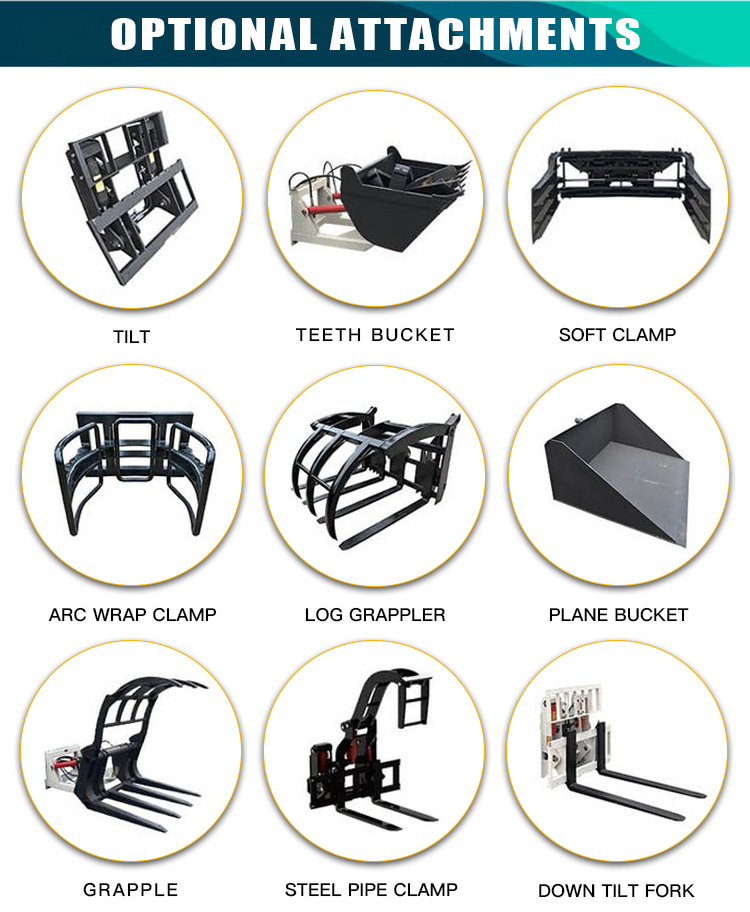

Optional Attachments


Attachments

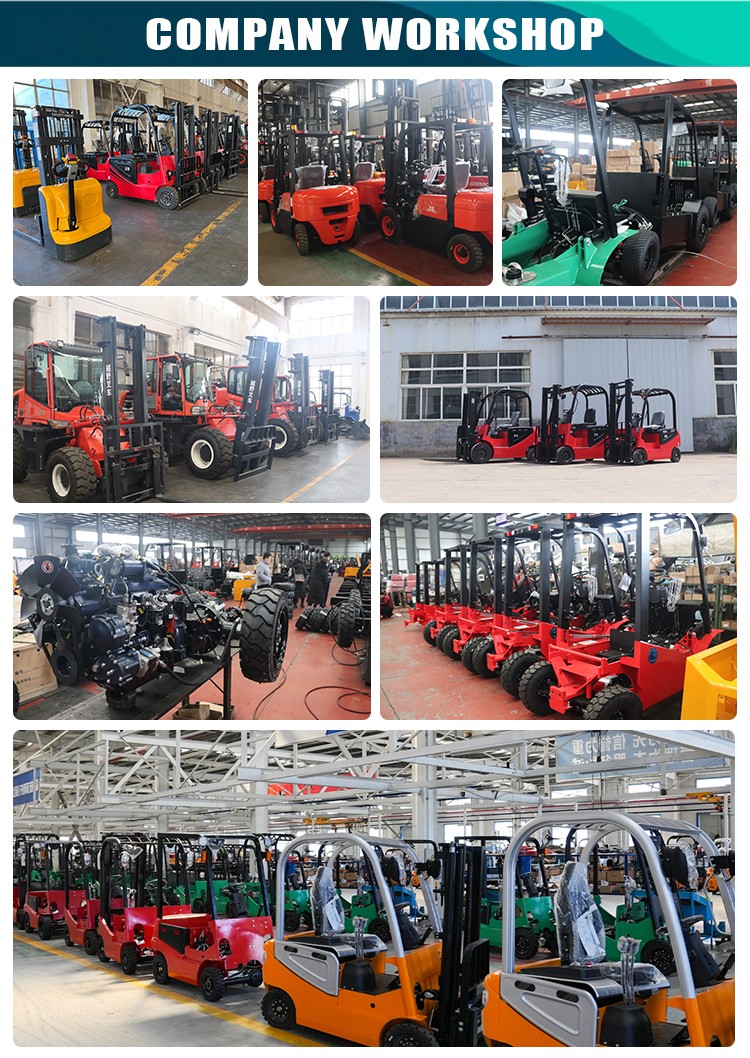

Warehouse


Warehouse

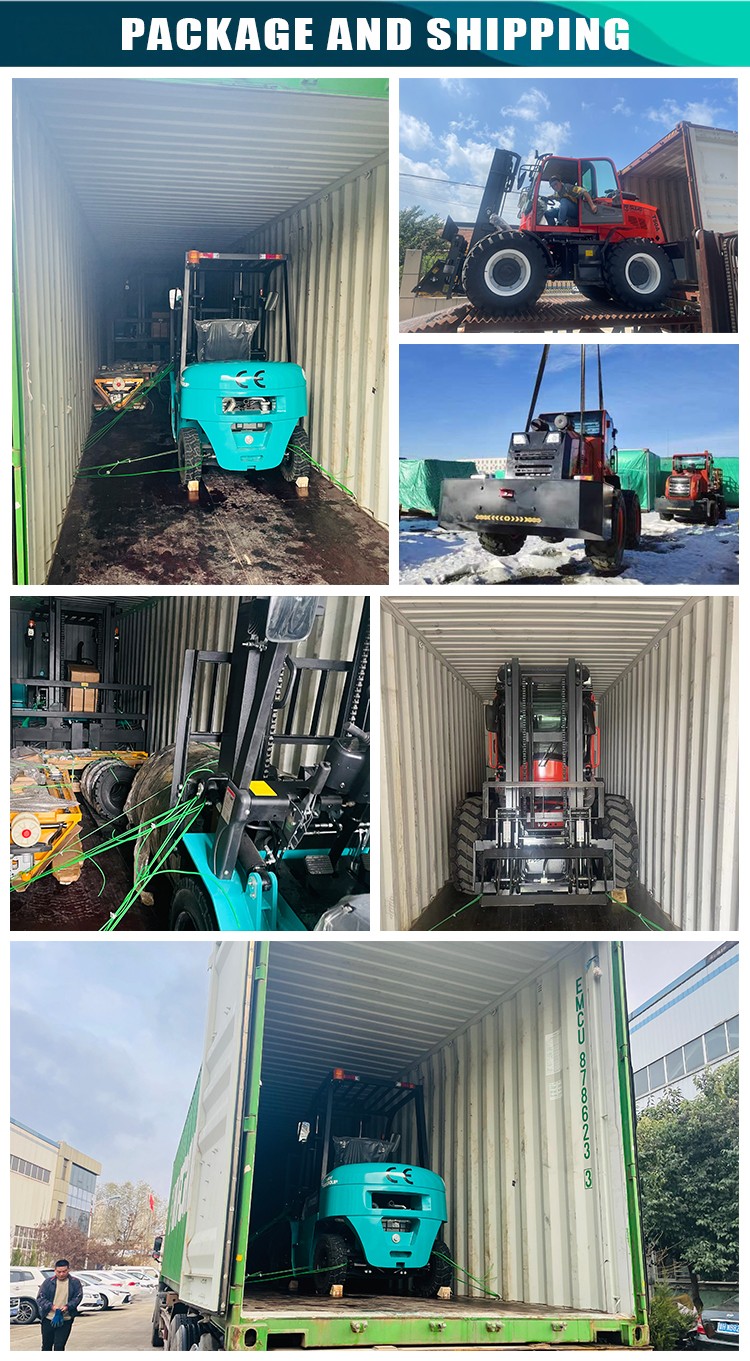

Packing and Delivery


Packing and Delivery


Our Customers


Our Customers


About Us


Shandong Jianggong Machinery Co., Ltd. is located in Jining city, Shandong province.Jianggong machinery is a research and development, production and sales in one of the industrial and trade enterprises, the main production: construction machinery products, excavator, forklift, backhoe loader and skid loader.Our company exports to more than 80 countries and regions around the world.The company has a high-quality team, can timely provide customers with perfect after-sales service.
