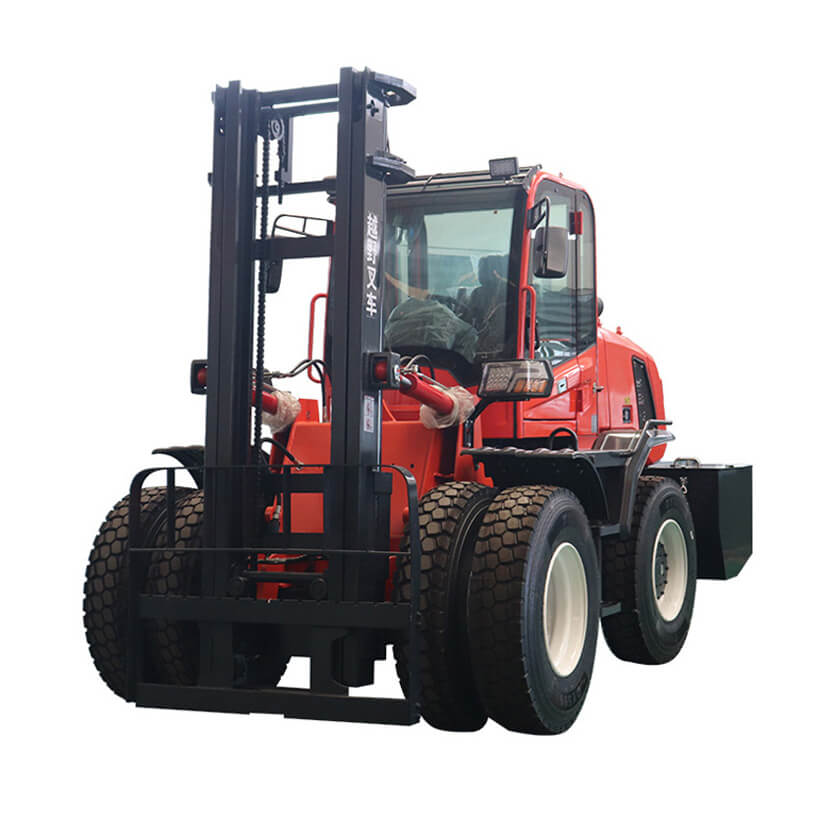

Forklift Offroad
1.Thickened mast, strong bearing capacity
2.Hydraulic power steering wheel, easy to operate
3.cast steel axle,wheel reduction
4.Electrophoretic spray paint,the paint surface is smooth and not easy to rust
5.LED light,Hydraulic power steering wheel, easy to drive
6.Optional pneumatic tires/solid tires

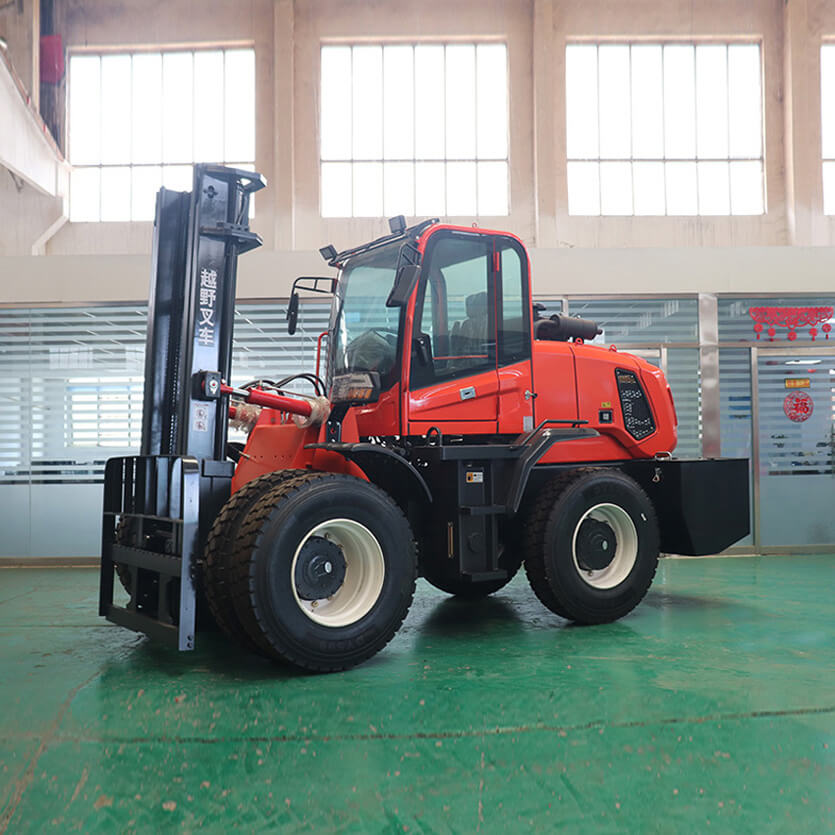

6-ton all-terrain forklift is a heavy-duty and durable material handling machine designed to operate efficiently in challenging outdoor environments. With a robust lifting capacity of 6 tons (or 12,000 pounds), this forklift is well-suited for handling heavy loads in rugged terrains such as construction sites, lumber yards, agricultural fields, and uneven surfaces. Equipped with specialized tires, sturdy suspension systems, and high ground clearance, the all-terrain forklift can navigate through rough terrains, gravel, mud, and other challenging outdoor conditions with ease. Featuring stability, versatility, and durability, the 6-ton all-terrain forklift is designed for high-performance operation in demanding settings, making it an essential asset for industries requiring efficient material handling solutions outdoors.
Parameter
Model | T60A | T80A | T100A |
Engine | Xichai/Yuchai4105,90-103kw | Yuchai4108,110kw | WeichaiWP6 6105,92kw |
Drive mode | 4wd | 4wd | 4wd |
Gearbox | 280 high low speed torque converter | 315 high low speed torque converter | 315 high low speed torque converter |
Axle | Wheel reduce | Wheel reduce | 30 |
Tire | 12R22.5(4/2) | 17.5-25 | 17.5-25 |
Wheelbase | 2400mm | 2800mm | 3000mm |
Rated lifting weight | 6000kg | 8000kg | 10000kg |
Rated lifting height | 4000-6000mm | 4000-6000mm | 4000-6000mm |
Load center distance | 600mm | 800mm | 800mm |
Min. turning radius | 4500mm | 5500mm | 6500mm |
Max. climbing angle | ≤38° | ≤38° | ≤38° |
Min. ground clearance | 380mm | 380mm | 380mm |
Tilt of the mast,front/rear | 10°/8° | 10°/8° | 10°/8° |
Speed | 45km/h | 45km/h | 45km/h |
Max. hook traction | 35Kn | 55Kn | 60Kn |
Mast steel width | 180mm | 200mm | 220mm |
Fork length | 1520mm | 1520mm | 1520mm |
Machine weight | 6500kg | 10500kg | 12000kg |
Machine size | 4600*2200*2850mm | 5800*2200*3100mm | 5800*2400*3300mm |
